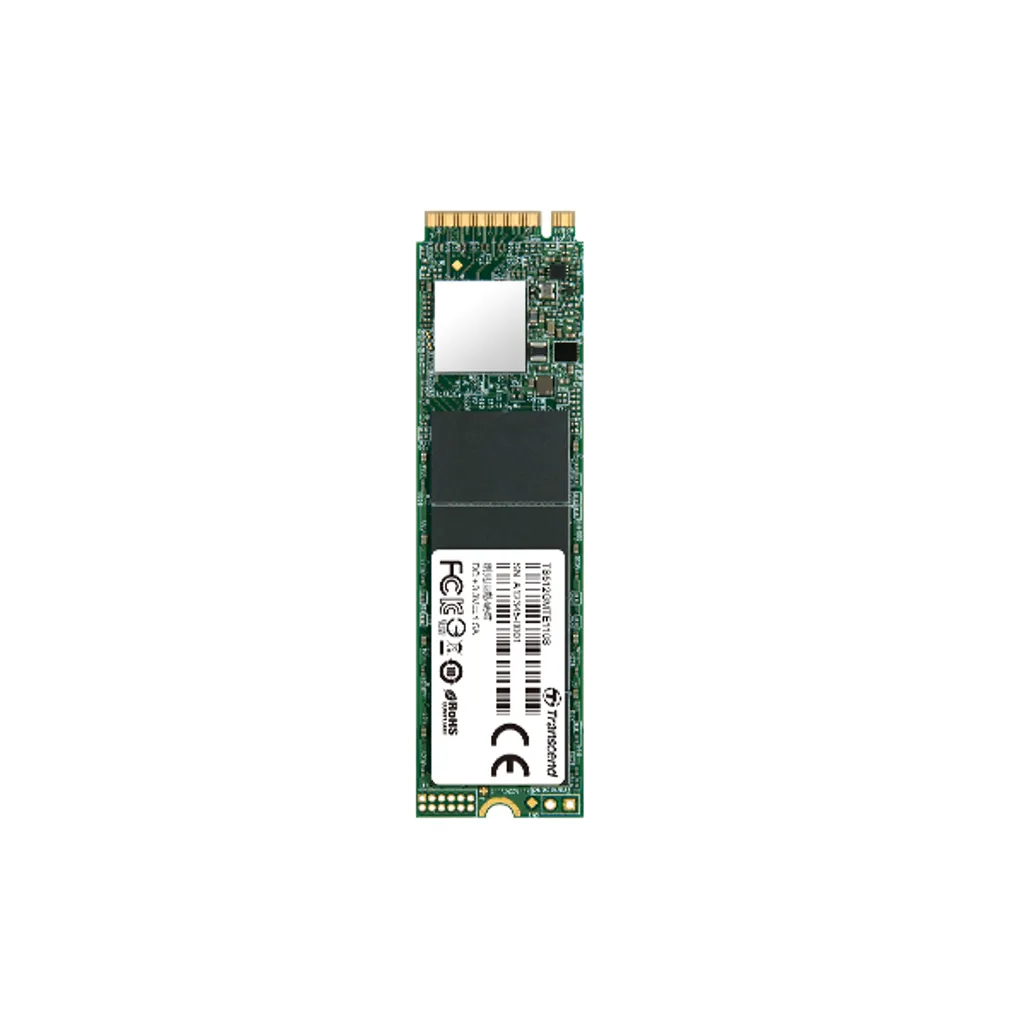

Transcend 128GB PCI-E M.2 2280 NVME GEN 3X4 SSD

R515.22 incl. VAT

Interest Free Payment Option:

Transcend 128GB PCI-E M.2 2280 NVME GEN 3X4 SSD -3D TLC -DRAMLESS

161 in stock

SKU: TS128GMTE110S Category:

Specifications

Appearance

Dimensions: 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")

Weight:  8 g (0.28 oz)

M.2 Type

2280-D2-M (Double-sided)

Interface

Bus Interface: NVMe PCIe Gen3 x4

Storage

Flash Type: 3D NAND flash

Capacity: 128 GB

Operating Environment

Operating Temperature: 0°C (32°F) ~ 70°C (158°F)

Operating Voltage: 3.3V±5%

Performance

Sequential Read/Write (CrystalDiskMark):

128 GB1,500/400 MB/s

4K Random Read/Write (IOmeter):

128 GB90,000/90,000 IOPS

Terabytes Written (TBW):

128 GB50 TBW

Mean Time Between Failures (MTBF): 2,000,000 hour(s)

Drive Writes Per Day (DWPD)     :0.2 (5 yrs)

Note:

Speed may vary due to host hardware, software, usage, and storage capacity.

The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.

Warranty

Certificate:

CE/FCC/BSMI/KC/RCM

Warranty:

Five-year Limited Warranty

Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.

System Requirement

Operating System:

Microsoft Windows 7 (additional driver required)

Microsoft Windows 8 (additional driver required)

Microsoft Windows 10

Linux Kernel 2.6.31 or later

Note:

Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage. Please click here for more information.

Technology

S.M.A.R.T.: Yes

DDR3 DRAM Cache: No

Advanced Garbage Collection: Yes

RAID Engine: No

LDPC Coding: Yes
