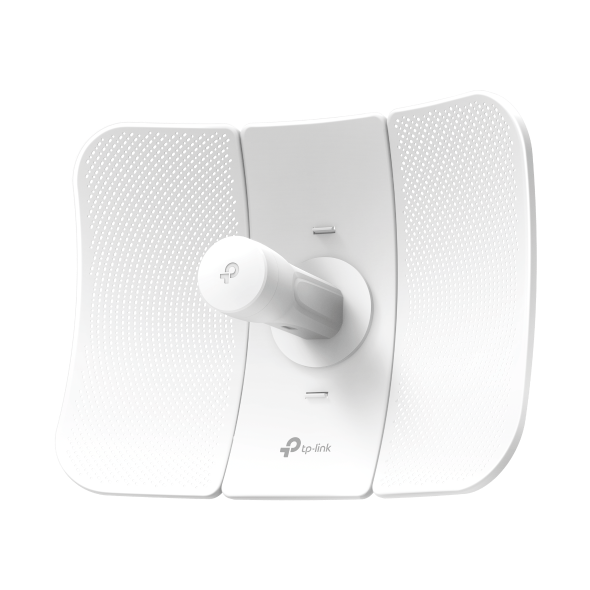

Unleash Fast and Reliable Outdoor Wi-Fi with TP-Link 5GHz AC 867Mbps 23dBi Outdoor CPE!
Specifications
Features:
Wireless Standards:
- IEEE 802.11a/n/ac
Wireless Speeds:
- Up to 867 Mbps (80 MHz, Dynamic)
- Up to 400 Mbps (40 MHz, Dynamic)
- Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency:
- 5.15 ~ 5.85 GHz
Transmit Power:
- Max. 27 dBm (Adjustable power by 1dBm)
Softwares Features:
Network Configuration:
- WAN: Static/ Dynamic/ PPPoE
- LAN: Static/ Dynamic/ DHCP
- Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
- Security: SPI Firewall/ Ping Forbidden/ DoS Protection
- Access Control
- Static Routing
- Bandwidth Control
- IP & MAC Binding
Wireless Configurations:
- Selectable Channel Width: 20/40/80MHz
- Auto Channel Selection
- Transmit Power Control
- Dynamic Frequency Selection(DFS)
- WDS Enable/ Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, SSID Broadcast Enable/ Disable
- Multi-SSID with VLAN Tagging(AP Mode only)
- Distance/ ACK Timeout Setting
- Wireless MAC Address Filter
- Wireless Advanced: Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
- Long Range PtP
Management:
- Discovery and Remote Management via Pharos Control application
- HTTP/ HTTPS Web-based management
- System log
- SNMP Agent(v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
System Tools:
- Indicators: Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
- Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
- Spectrum Analyzer
- Speed Test
- Ping
- Traceroute
- Antenna Alignment
System-level Optimizations:
- Optimized IGMP Snooping / Proxy for multicast applications
POE Adapter Features:
Interfaces:
- 1 x AC Jack with Earth Ground
- 1 × 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
- 1 × 10/100/1000 Mbps Shielded Ethernet Port (Data)
Button:
- Remote Reset Button
Power Status LEDs:
- Green
Input:
- 100 - 240VAC, 50/60Hz
Output:
- 24VDC, 0.5A Max
- +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency:
- >84.29%
Certifications:
- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Others:
Certification:
- CE, FCC, RoHS, IP65, IC
System Requirements:
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment:
- Operating Temperature: -40 degree Celsius ~ 70 degree Celsius
- Storage Temperature: -40 degree Celsius ~ 70 degree Celsius
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
What's in the box
