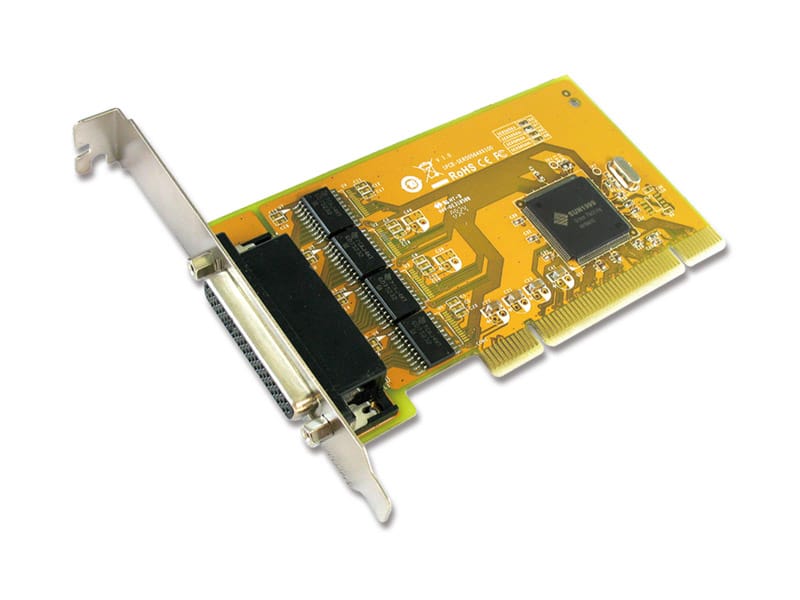

Discover the Sunix SER5056A 4-port RS-232 Universal PCI Serial Board
Specifications
Description: 4-port RS-232 Universal PCI Serial Board
Serial Communication
- Interface: RS-232
- Controller: SUNIX SUN1999 Yazi (16C950 UART Compatible)
- Bus: Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
- No. of Ports: 4-port
- IRQ & IO: Assigned by System
- FIFO: 128 byte (Hardware)
- Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
- Baud rate: 50 bps to 115.2 Kbps
- Data bit: 5, 6, 7, 8
- Stop bit: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: None, Xon/Xoff, RTS/CTS
- Protection: ±2KV ESD protection for each signal Human Body Model (HBM)
- PCB connector: DB44 Female
Driver Support
- Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) / 11
- Windows Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)
- Linux: Linux 2.x / 3.x / 4.x / 5.x
- DOS
Regulatory Approvals
- Hardware: CE, FCC, VCCI, BSMI
- Software: Microsoft WHQL Windows
Environment
- Operation Temperature: 0 to 60°C (32 to 140°F)
- Operation Humidity: 5 to 95% RH
- Storage Temperature: -20 to 85°C (-4 to 185°F)
Dimension
- PCB Dimension: 120 x 68 mm
- Bracket: Standard 121 mm
- Bracket Space: 1
Experience the power of reliable serial communication with the Sunix SER5056A 4-port RS-232 Universal PCI Serial Board. Limited availability due to high demand - act now and enhance your connectivity with this amazing product!
Don't miss out on the opportunity to improve your setup. Add the Sunix SER5056A 4-port RS-232 Universal PCI Serial Board to your cart today and experience instant connectivity like never before!
