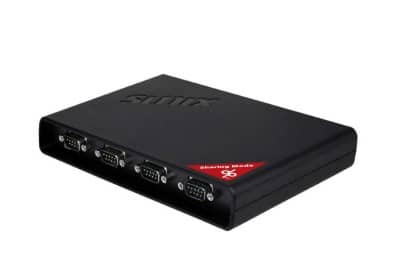

Sunix DPSS04H00 Sharing Mode Ethernet enabled 4-port RS-232 Port Replicator: Unleash the Power of Connectivity
Introducing the Sunix DPSS04H00 Sharing Mode Ethernet enabled 4-port RS-232 Port Replicator, a must-have tool for seamless data communication and control. With this innovative device, you can connect multiple devices simultaneously and enjoy the convenience of high-speed data transfer. Say goodbye to tangled wires and limited port availability - this port replicator will revolutionize the way you work.
Features and Benefits:
This cutting-edge device boasts a range of features that will enhance your workflow and productivity. Take advantage of:
- Amazing 4-port RS-232 connectivity for effortless communication
- Instant Ethernet enabled ports for quick and easy networking
- Exclusive power management capabilities for efficient operation
Specifications:
Serial Communication
Ethernet Communication
Power Requirements
Driver Support
Regulatory Approvals
Interface RS-232 Baud rate 50bps ~115.2Kbps
Controller SUNIX DPL2000Q Stop bit 1, 1.5, 2
BUS Ethernet Parity even, odd, none, mark, space
No. of Port 4-port Flow Control Xon/Xoff (software)
FIFO 1Kbyte Hardware / per
port Connector DB9 Male
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Protection
±15KV ESD IEC6000-4-2 Air Discharge
±8KV ESD IEC61000-4-2 Contact Discharge
±4KV ESD IEC61000-4-2 Level2 Line-to-Line
Number of Ports 2-port, Ethernet Switch Port
Speed 10/100 Mbps, auto MDI/MDIX
Connector RJ45
Magnetic Isolation
Protection 1.0K Built-in
Input Voltage 5 to 12VDC
Power Consumption 2.5W @ 5VDC
Connector DC-Jack
Microsoft Client XP (X86) / 7 / 8 / 8.1 / 10 (X86/X64)
Microsoft Server 2003 / 2008 / 2012R2 (X64)
Hardware EMC
EUR: CE EN55022 Class B, EN55024
US: FCC Part 15 Class B
TAIWAN: BSMI: CNS13438
AS/NZS: C-Tick: CISPR22 AS/NZS
JAPAN: VCCI
Software Driver
Microsoft WHQL Windows
Microsoft Client: XP (X86)/7/8/8.1/10 (X86/X64)
Microsoft Server: 2003/2008/2012R2 (X64)
Don't miss out on the opportunity to own the Sunix DPSS04H00 Sharing Mode Ethernet enabled 4-port RS-232 Port Replicator. With limited availability and high demand, this is your chance to elevate your connectivity experience. Add it to your cart now and unleash the power of seamless communication!
