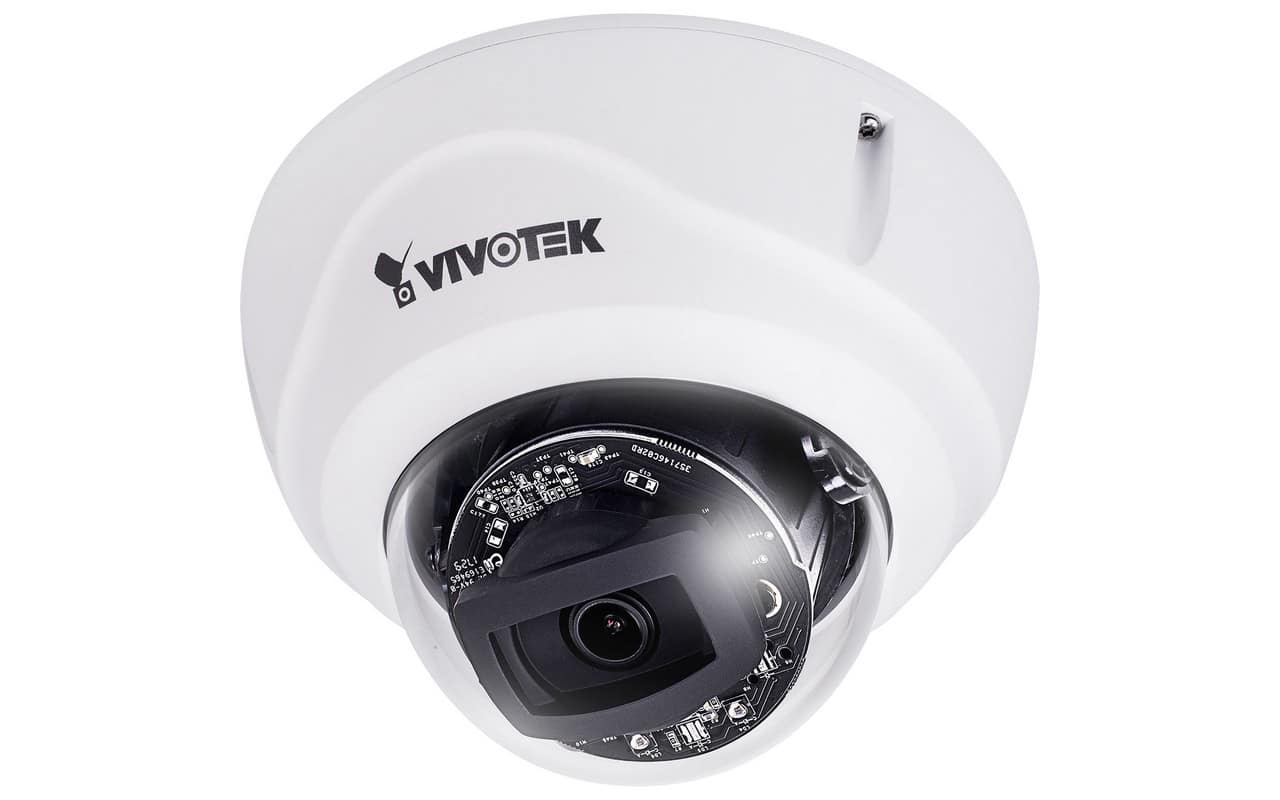

Vivotek Outdoor IK10 Dome; H.265; 2MP;

Vivotek Outdoor IK10 Dome; H.265; 2MP; Remote Focus; 2.8-12mm; 30M IR; WDR PRO.

R2,700.66 incl. VAT

29 in stock

SKU: FD9368-HTV Category:

System Information

Model

FD9368-HTV

CPU

Multimedia SoC (System-on-Chip)

Flash

128 MB

RAM

256 MB

Camera Features

Image Sensor

1/2.9" Progressive CMOS

Max. Resolution

1920x1080 (2MP)

Lens Type

Motorized, Vari-focal, Remote Focus

Focal Length

f = 2.8 ~ 12 mm

Aperture

F1.4 ~ F2.8

Auto-iris

Fixed iris

Field of View

93° ~ 32° (Horizontal)

50° ~ 18° (Vertical)

110° ~ 37° (Diagonal)

Shutter Time

1/5 sec. to 1/32,000 sec.

WDR Technology

WDR Pro

Day/Night

Yes

Removable IR-cut Filter

Yes

IR Illuminators

Built-in IR Illuminators up to 30 meters with Smart IR, IR LED*2

Minimum Illumination

0.055 lux @ F1.4 (Color)

<0.005 lux @ F1.4 (B/W)

0 lux with IR illumination on

Pan Range

353°

Tilt Range

75°

Rotation Range

350°

Pan/Tilt/Zoom Functionalities

ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

Storage

Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)

Built-in Installation Aids

Remote focus, remote zoom

Video

Video Compression

H.265, H.264, MJPEG

Maximum Frame Rate

30 fps @ 1920x1080

Maximum Streams

3 video streams (Up to 8 configurable profiles)

S/N Ratio

68 dB

Dynamic Range

120 dB

Video Streaming

Adjustable resolution, quality and bitrate, Smart Stream III

Image Settings

General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings

Audio

Audio Capability

One-way Audio

Audio Compression

G.711, G.726

Audio Interface

Built-in microphone

Effective Range

5 meters

Network

Users

Live viewing for up to 10 clients

Security

Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management

Protocols

802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

Interface

10 Base-T/100 Base-TX Ethernet (RJ-45)

*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF

Profile G, S, T supported, specification available at www.onvif.org

Solution Integration

Video Motion Detection

Five-window video motion detection

VADP Package

Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud

Alarm and Event

Event Trigger

Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot

Event Action

Event notification via email, HTTP, FTP, NAS server, SD card, push notification

File upload via email, HTTP, FTP, NAS server, SD card

General

Connectors

RJ-45 cable connector for 10/100Mpbs Network/PoE connection

LED Indicator

System power and status indicator

Power Input

IEEE 802.3af PoE Class 0

Power Consumption

Max. 12.95 W/9 W (IR on/off)

Dimensions

ø 133.7 x 103.8 mm

Weight

819 g

Certifications

EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252)

Operating Temperature

Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)

Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)

Humidity

90%

Warranty

36 months

System Requirements

Operating System

Microsoft Windows 10/8/7

Mac 10.12 (Chrome only)

Web Browser

Chrome 58.0 or above

Internet Explorer 10/11

Other Players

VLC: 1.1.11 or above
