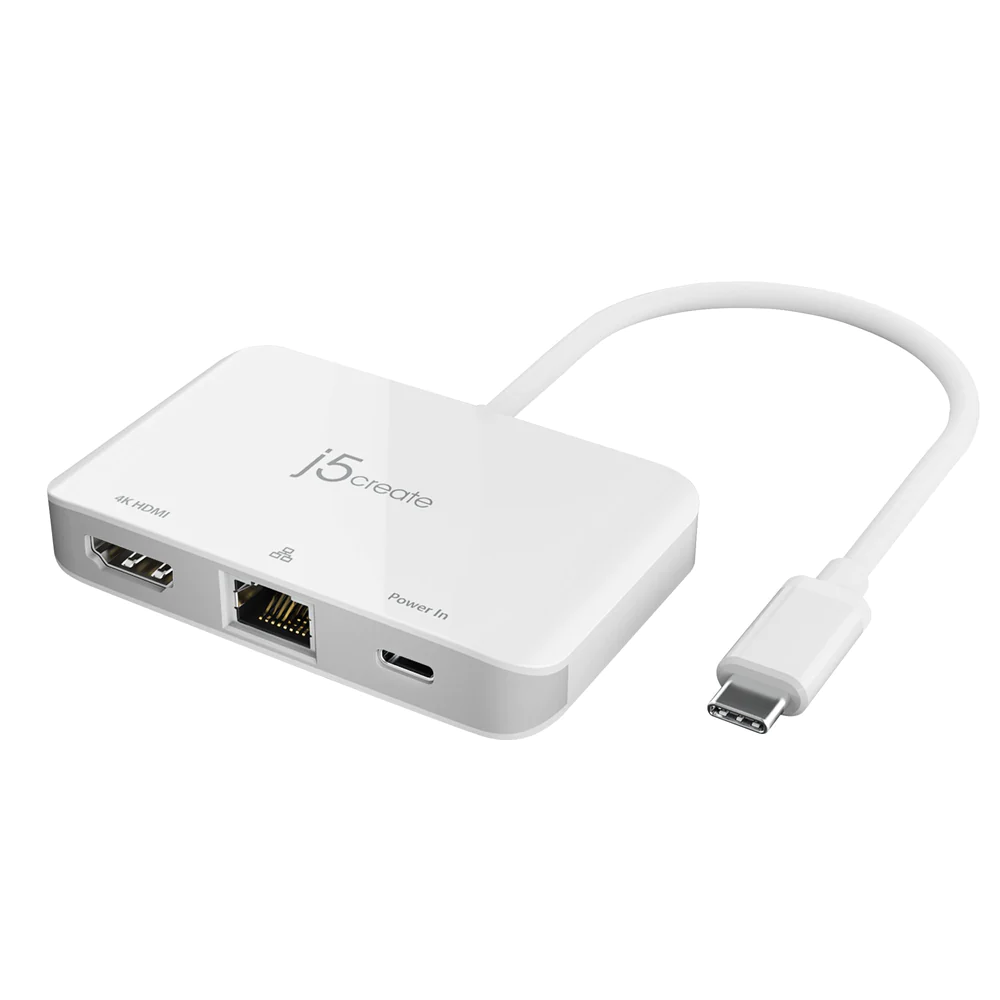

J5create JCA351 USB-C to 4K HDMI Ethernet Adapter

J5create JCA351 USB-C to 4K HDMI Ethernet Adapter: Unlock the Power of Connectivity

Specifications

System Requirements

• • Available DisplayPort™ Alternate Mode over USB-C® connector required.
• • DisplayPort™ v1.2 required on graphics card or video source to support 4K @ 30 Hz resolution.
• • Available USB-C® port (USB™ 3.1 is recommended) with support for USB™ Power Delivery and DisplayPort™ Alternate Mode to ensure proper functionality.
• • Windows® 11,10 / macOS® / Chrome OS™

Special Notes

• • DisplayPort™ Alternative mode is required to output to a display via the HDMI™ port.
• • Windows® 10-11 / macOS® / Chrome OS™ compatible
• • If you are using a high-powered USB™ device, please attach a USB-C® power adapter to the JCA351 power delivery port for maximum performance.
• • To ensure files copy completely, do not remove the USB-C® power adapter while copying files.
• • Power adapter not included. If applicable, please use the power adapter that came with your computer.
• • Your mobile device might require more power than your charger allows when using the adapter and charging your device simultaneously. To ensure the JCA351 powers and charges your mobile device while in use, a higher wattage power adapter may be required.

Hardware

• • Warranty: 2 Year Limited
• • Host Connector: USB-C®
• • Video Output: HDMI™
• • Power Source: Bus-Powered, Self-powered
• • Audio Supported: Yes
• • Ports: 1 – USB-C® PD for upstream charging, 1 – 4K HDMI™ Output, 1 – Gigabit Ethernet

Performance

• • Maximum Display Resolution: 3840 x 2160
• • Maximum Display Refresh Rate: 30 Hz
• • Displays Supported: 1
• • Audio Channel: 2.1 via HDMI™

Power

• • Power Delivery: N/A
• • Power Consumption: N/A
• • PD Input Current: Up to 20V
• • PD Input Voltage: Up to 5A
• • PD Output Current: Up to 20V
• • PD Output Voltage: Up to 4.5A

Physical Specifications

• • Color: White
• • Enclosure Type: ABS Plastic
• • Cable Length: 7.87 in. (20 cm)
• • Product Height: 1.96 in. (50 mm)
• • Product Width: 3.14 in. (80 mm)
• • Product Depth: 0.55 in. (14 mm)
• • Product Weight: 1.83 oz (52g)
• • Storage Temperature: 14 to 140°F (-10 to 65°C)
• • Storage Humidity: < 85% non-condensing
• • Operating Temperature: 32 to 118°F (0 to 47°C)
• • Operating Humidity: < 85% non-condensing

Package Contents

<
