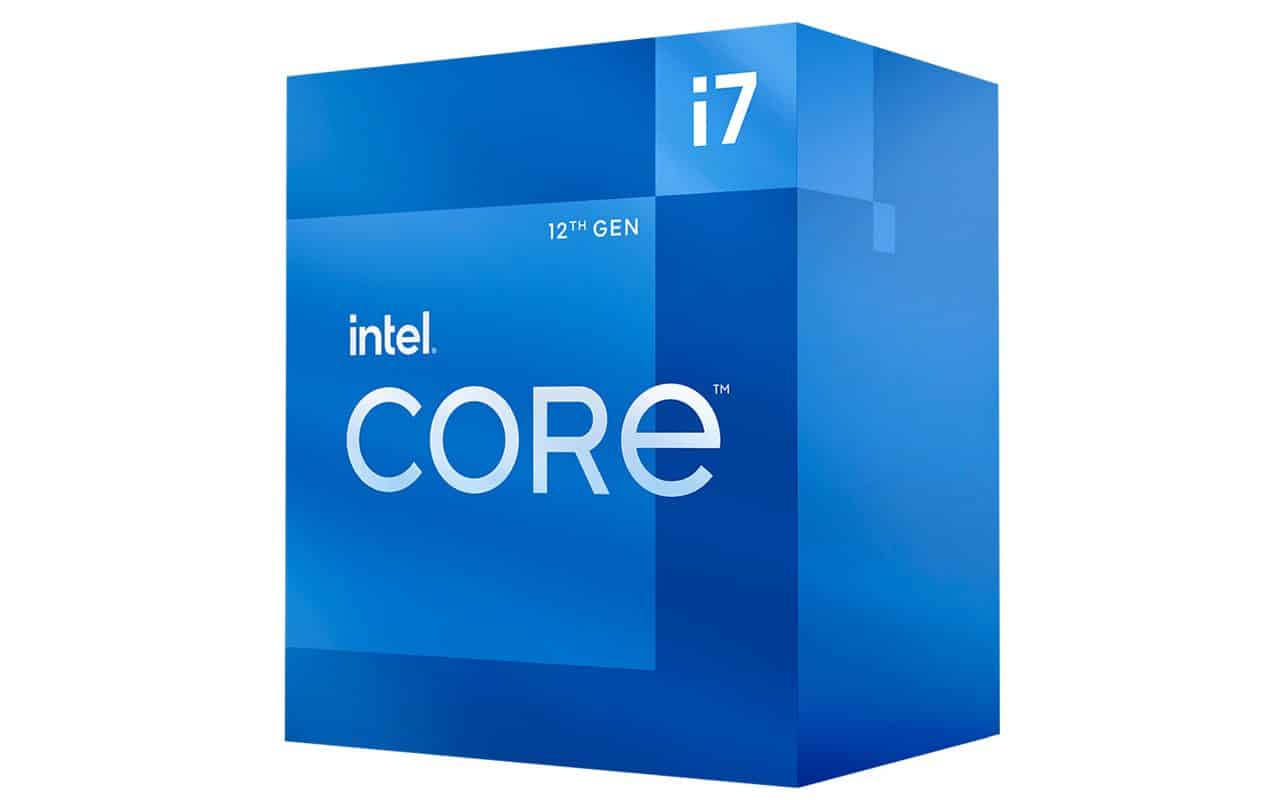

Intel Core i7 12700 Up to 4.9 GHZ

R7,630.02 incl. VAT

Interest Free Payment Option:

Intel Core i7 12700 Up to 4.9 GHZ; 12 Core (8P+4E); 20 Thread; 25MB Smartcache; 65W TDP – Intel Laminar RM1 Cooler included S RL

68 available Online!

SKU: BX8071512700 Category:

SPECIFICATIONS

Vertical Segment: Desktop
Processor Number: i7-12700
Lithography: Intel 7
Use Conditions: PC/Client/Tablet
Total Cores: 12
# of Performance-cores: 8
# of Efficient-cores: 4
Total Threads: 20
Max Turbo Frequency: 4.90GHz
Intel® Turbo Boost Max Technology 3.0 Frequency: 4.90GHz
Performance-core Max Turbo Frequency: 4.80GHz
Efficient-core Max Turbo Frequency: 3.60GHz
Performance-core Base Frequency: 2.10GHz
Efficient-core Base Frequency: 1.60GHz
Cache: 25MB Intel® Smart Cache
Total L2 Cache: 12MB
Processor Base Power: 65W
Maximum Turbo Power: 180W

Supplemental Information
Embedded Options Available: No

Memory Specifications
Max Memory Size (dependent on memory type): 128GB
Memory Types:
- Up to DDR5 4800 MT/s
- Up to DDR4 3200 MT/s
Max # of Memory Channels: 2
Max Memory Bandwidth: 76.8 GB/s

Processor Graphics
Processor Graphics: Intel® UHD Graphics 770
Graphics Base Frequency: 300MHz
Graphics Max Dynamic Frequency: 1.50GHz
Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units: 32
Max Resolution (HDMI): 4096 x 2160 @ 60Hz
Max Resolution (DP): 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz
DirectX* Support: 12
OpenGL* Support: 4.5
Multi-Format Codec Engines: 2
Intel® Quick Sync Video: Yes
Intel® Clear Video HD Technology: Yes
# of Displays Supported: 4
OpenCL* Support: 2.1

Expansion Options
Direct Media Interface (DMI) Revision: 4.0
Max # of DMI Lanes: 8
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes: 20

Package Specifications
Sockets Supported: FCLGA1700
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2020C
TJUNCTION: 100°C
Package Size: 45.0 mm x 37.5 mm

Advanced Technologies
Intel® Gaussian & Neural Accelerator: 3.0
Intel® Thread Director: Yes
Intel® Deep Learning Boost (Intel® DL Boost): Yes
Intel® Optane™ Memory Supported: Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Max Technology 3.0: Yes
Intel® Turbo Boost Technology: 2.0
Intel® Hyper-Threading Technology: Yes
Intel® Virtualization Technology (VT-x): Yes
Intel® Virtualization Technology for Directed I/O (VT-d): Yes
Intel® VT-x with Extended Page Tables (EPT): Yes
Intel® 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Intel® Volume Management Device (VMD): Yes

Security & Reliability
Intel® AES New Instructions: Yes
Secure Key: Yes
Intel® OS Guard: Yes
Execute Disable Bit: Yes
Intel® Boot Guard: Yes
Mode-based Execute Control (MBE): Yes
Intel® Control-Flow Enforcement Technology: Yes
