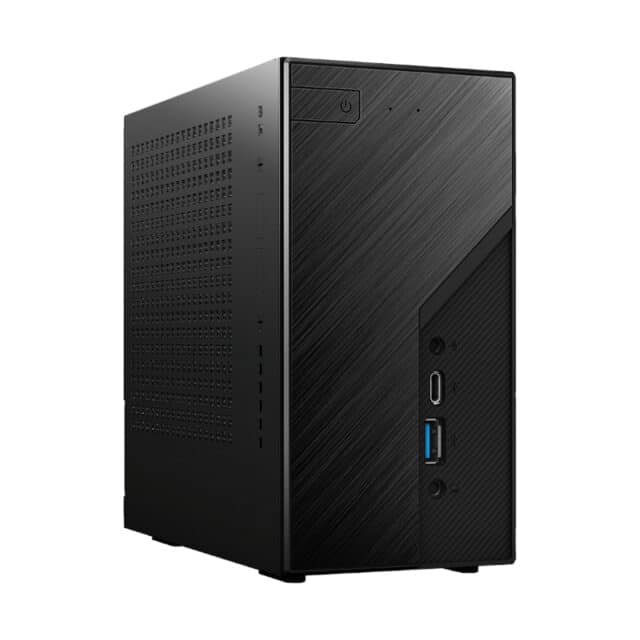

ASRock Deskmini B660W Barebone – LGA1700 Socket

Our Online Price Paying via Bank Transfer R 5169.85 incl. VAT

Normal Price – Without discount

R5,329.74 incl. VAT

1 Available: Delivery 2-3 Business Days

Or split into 4x interest-free payments Learn more

Introducing the ASRock Deskmini B660W Barebone – LGA1700 Socket! This compact and versatile barebone system is perfect for building your own high-performance PC. With support for Intel’s latest 11th Gen processors, dual-channel DDR4 memory, and M.2 SSDs, you can create a powerful desktop setup to suit your needs. Its sleek and modern design fits seamlessly into any workspace or home office. Upgrade your computing experience with the ASRock Deskmini B660W Barebone today!

SKU: SYN-90BXG4601-A20KA0W Category:

FEATURES:

  • Supports 13th Gen & 12th Gen Intel Core™ Processors (LGA1700), up to 65W
  • Dual DDR4-3200MHz SO-DIMMs, up to 64GB
  • Multi Video Outputs：1 x DisplayPort, HDMI & D-Sub
  • 1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s)
  • 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (with USB Type-C Alt Mode)
  • 1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
  • 1 x Blazing M.2 (PCIe Gen5 x4) Slot
  • 1 x Hyper M.2 (PCIe Gen4 x4) Slot
  • 2 x 2.5″ HDD/SSD with RAID 0/1
  • 1 x M.2 Key-E for Wi-Fi

SPECIFICATIONS:

  • CPU: Supports Intel® 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700), Max. TDP 65W
  • Cooler: Supports Intel® CPU Cooler (Max. Height ≦ 47mm)
  • Memory: Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)
  • Chipset: Intel® B660
  • Graphics: HDMI (4K@60Hz), DisplayPort 1.4, DisplayPort 1.4 (over USB Type-C Alt Mode), D-Sub, Supports up to 4 displays simultaneously
  • Audio: Realtek ALC269 Audio Codec
  • Storage: 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1), 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, Supports Intel® Optane™ Technology, Supports NVMe SSD as boot disks, Supports Intel® Volume Management Device (VMD)
  • LAN: Gigabit LAN (Intel® I219V)
  • WLAN: 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel® CNVi (Integrated Wi-Fi/BT)
  • Front I/O: 1 x MIC-In, 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection), 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), 1 x Head Phone with MIC Jack
  • Rear I/O: 1 x DC-In Jack (Compatible with the 19V power adapter), 1 x D-Sub Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode), 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection), 2 x USB 2.0 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED
  • Connectors: 1 x USB 2.0 Header, 1 x Front Panel Header, 2 x 4-Pin fan connectors (CPU, SYS), 1 x Internal Speaker Header (4-Pin), 1 x Audio Header (4-Pin)
  • Accessory: 2 x SATA Data with Power Cable, 1 x 120W/19V adapter, 1 x Screws Pack, 1 x Intel® AC-3168 Wi-Fi Kit
  • OS: Microsoft® Windows® 10 64-bit / 11 64-bit
  • Product Dimensions: 15.5 x 15.5 x 8 cm

WHAT’S IN THE BOX:

  • AsRock DeskMini B600 Barebone Desktop PC – Black x1
